6306 FLT Deep groove ball bearings
Ask for product print product details Save as PDF

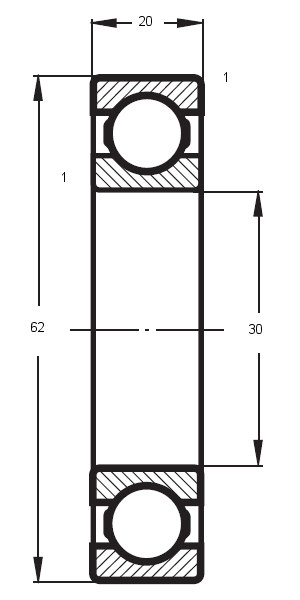

Technical dataScheme
symbol 6306
mass [kg]: 0.346
basic load rating (dynamic) C [kN] 28.7
basic load rating (static) Co [kN] 15.8
limiting speeds (grease) [min-1] 9000
limiting speeds (oil) [min-1] 11000
modification Z ZZ RS 2RS N
d [mm] 30
D [mm] 72
B [mm] 19
rs min [mm] 1
D1 [mm] 68.81
a ~ [mm] 3.28
b [mm] 1.9
ro max [mm] 0.6
