53244 Single - direction with sphere housing washer
Ask for product print product details Save as PDF

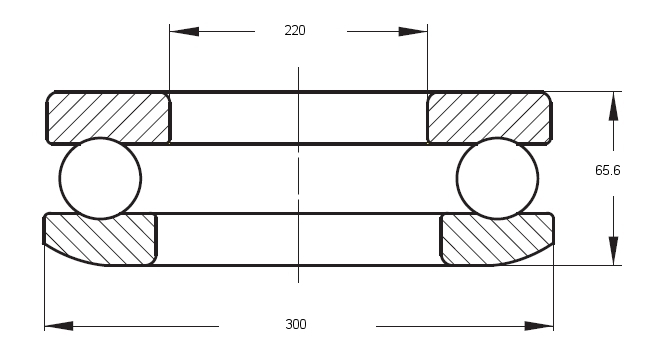

Technical dataScheme
symbol 53244
mass [kg]: 16.8
basic load rating (dynamic) C [kN] 336
basic load rating (static) Co [kN] 1230
modification M MU
d [mm] 220
D [mm] 300
H [mm] 65.6
H1 [mm] 75
